Characters:
1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor.
2. FullServo driven with exact web tension control,easy to operate,Minimizes waste.
3.Internet fault diagnostics.
4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc.
5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
Characters:
1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor.
2. FullServo driven with exact web tension control,easy to operate,Minimizes waste.
3.Internet fault diagnostics.
4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc.
5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
TechnicalParameter:
|
Max Paper Width |
330mm |
|
Max Unwinding Dia. |
700mm |
|
Max Rewinding Dia. |
700mm |
|
Power Supply |
AV,380V,50HZ |
|
Air supply |
0.4~0.6MPa |
1. Mother reel end photocell with automatic stop. 2. Full rotary flexo printing module support sport varnishing/cold foil 3. Die cut unit able to work full rotary mode and semi rotary mode. 4. Precision cutting to reduce waste 3. Die cut station with servo register control. 4. Internet fault diagnostics . 5. Dual 3”pneumatic rewinder for a max roll diameter of 450mm with independent tension control.(optional )

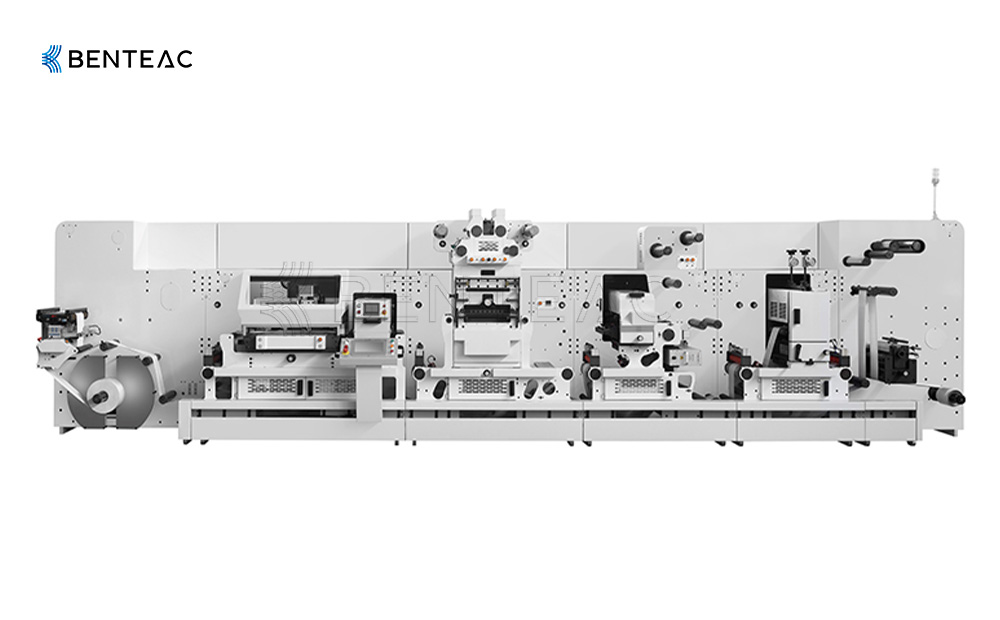

Label Flexo Printing and Flat Die Cutting Machine Line.In addition to the standard die-cutting function, this machine can also be equipped with screen printing, flat ironing, round ironing, polishing and cold ironing. The modular function setting allows each function to be matched at will.
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
