NO. |
Standard machine |
|
1 |
Unwind(Max unwind dia.700mm; Air expanding mandrel 3") |
|
2 |
BST web guider(Edge position control) |
|
3 |
Full rotary flexo printing(1 1rubber roller, 1 anilox roller and chiller drum) |
|
4 |
UV dryer(Taiwan UV light) |
|
5 |
Cold foil(max unwind&rewind dia.400mm) |
|
6 |
Semi/full rotary die cutting(120T Magnetic cylinder, register sensor) |
|
7 |
Slitting: Min slitting max-width='100%' width 16mm(6sets blades) |
|
8 |
SingleRewind(Maxrewind dia.700mm; Air expanding mandrel 3") |
|
9 |
Waste matrix(Maxrewind dia.600mm; Air expanding mandrel 3") |
Feature:
1. Mother reel end photocell with automatic stop.
2. Full rotary flexo printing module support sport varnishing/cold foil
3. Die cut unit able to work full rotary mode and semi rotary mode.
4. Precision cutting to reduce waste
3. Die cut station with servo register control.
4. Internet fault diagnostics .
5. Dual 3”pneumatic rewinder for a max roll diameter of 450mm with independent tension control.(optional )
6. High accuracy re-register system, provide you higher quality and efficiency.
Teachnical Specifications:
|
Max Web Width |
450mm |
|
Max Unwinding Dia |
700mm |
|
Max Rewinding Dia |
700mm |
|
Max Speed of Flexo printer |
90m/min |
|
Max Semi Rotary Die Cutting Speed |
60m/min |
|
Max Full Rotary die cutting Speed |
90m/min |
|
Accuracy of Adhesive Cutting |
±0.15mm |
|
Power |
3 PH+N+PE |
|
Air supply |
0.4~0.6MPa |
|
Overall Diameter（L×W×H） |
3600mm×1370mm×1925mm |
|
Weight |
3800KG |

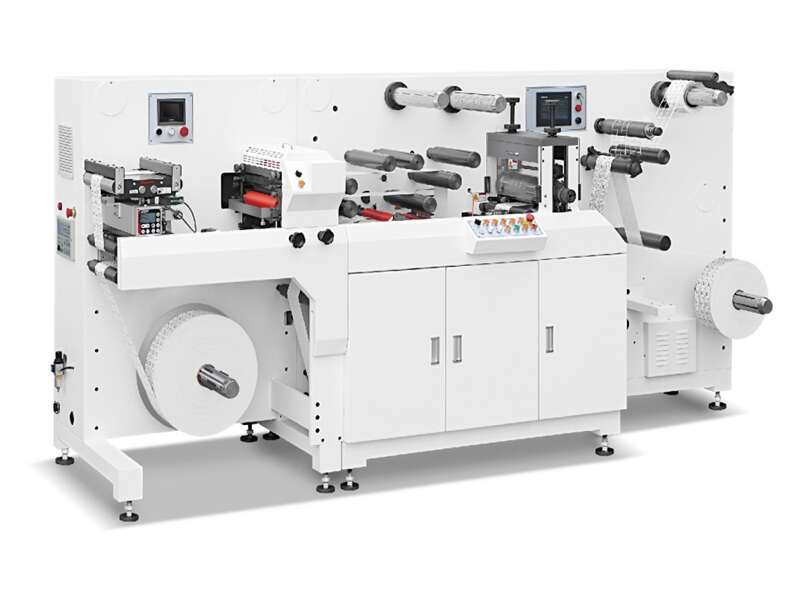

It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
The double-unit trademark die-cutting and hot stamping machine adopts a synchronous transmission mechanism to realize the synchronous movement of the two molding units. A closed transmission chain is used to drive the gripper row to transfer the paper to two molding units in turn to achieve hot stamping, creasing or die cutting processes.
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
1. Mother reel end photocell with automatic stop. 2. Full rotary flexo printing module support sport varnishing/cold foil 3. Die cut unit able to work full rotary mode and semi rotary mode. 4. Precision cutting to reduce waste
