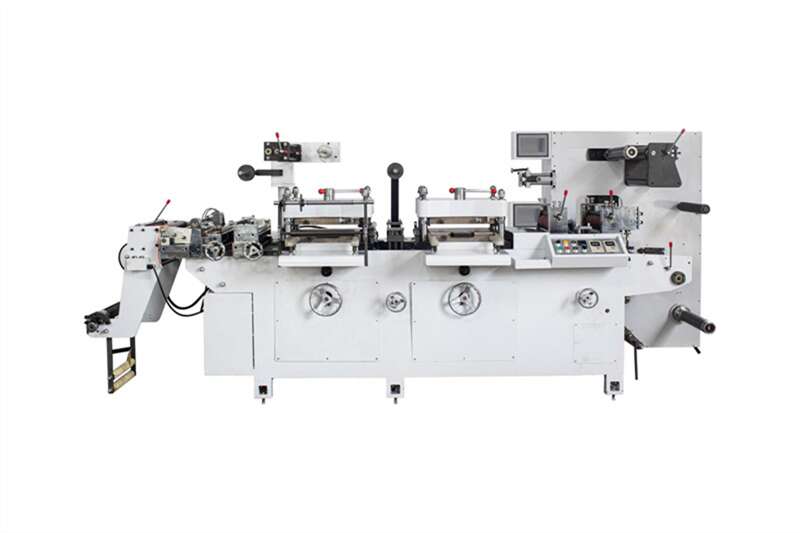

The double-unit trademark die-cutting and hot stamping machine adopts a synchronous transmission mechanism to realize the synchronous movement of the two molding units.
A closed transmission chain is used to drive the gripper row to transfer the paper to two molding units in turn to achieve hot stamping, creasing or die cutting processes.
The double-unit trademark die-cutting and hot stamping machine adopts a synchronous transmission mechanism to realize the synchronous movement of the two molding units. A closed transmission chain is used to drive the gripper row to transfer the paper to two molding units in turn to achieve hot stamping, creasing or die cutting processes. A horizontal aluminum foil control unit is added to the second molding unit to realize more product processing functions. Since the paper can reach two molding stations at one time, the processing accuracy of the equipment is guaranteed. At the same time, the processing technology is expanded. For example, hot stamping of two semicircles with different colors can be completed, so that the two semicircles are joined into one circle. Due to the change of processing technology, the difficulty of processing is greatly increased, which is almost impossible to achieve on the original hot stamping machine, which improves the anti-counterfeiting degree of the product and will bring high added value to printers. This equipment will be a winning weapon for customers.
|
Main Technical Specifications: |
|
|
Cutting Speed |
20-150m/min |
|
Max. Unwinding Dia. |
500mm |
|
Max. Web Width |
350 mm |
|
Max. Mould Cutting Width |
320 mm |
|
Max. Mould Cutting Length |
320 mm |
|
Orientation Accuracy |
±0.15 mm |
|
Total Power |
3 Kw |
|
Power Voltage |
220V±10% |
|
Weight |
About 1500 Kg |
Illustrate in detail

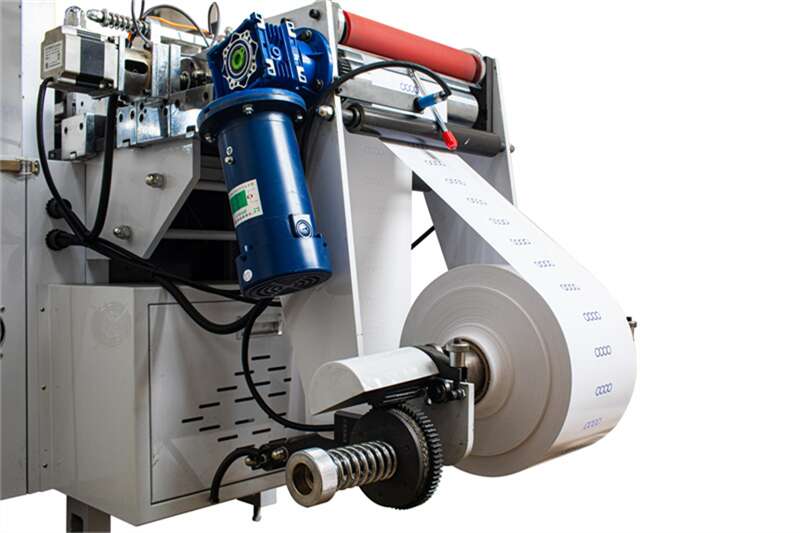

1. Reel material feeding method:
Adopt the roll feeding method to directly perform die-cutting and creasing, saving trimming, single-sheet cutting and other processes, directly creasing and die-cutting the printed and filmed roll materials, and processing the materials into products at one time .
2. Improve productivity and reduce costs:
There is no need to reserve a bite during typesetting and continuous cross typesetting can be carried out, which can improve the utilization rate of raw materials, reduce equipment investment and floor space, save a large number of operators, increase productivity and yield, shorten production cycle and reduce manufacturing cost.
3. Optimized combination:
The whole machine has a compact and beautiful structure, high degree of automation, convenient operation, stable performance and optimized combination of application flexibility.
1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor. 2. FullServo driven with exact web tension control,easy to operate,Minimizes waste. 3.Internet fault diagnostics. 4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc. 5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters. TechnicalParameter:

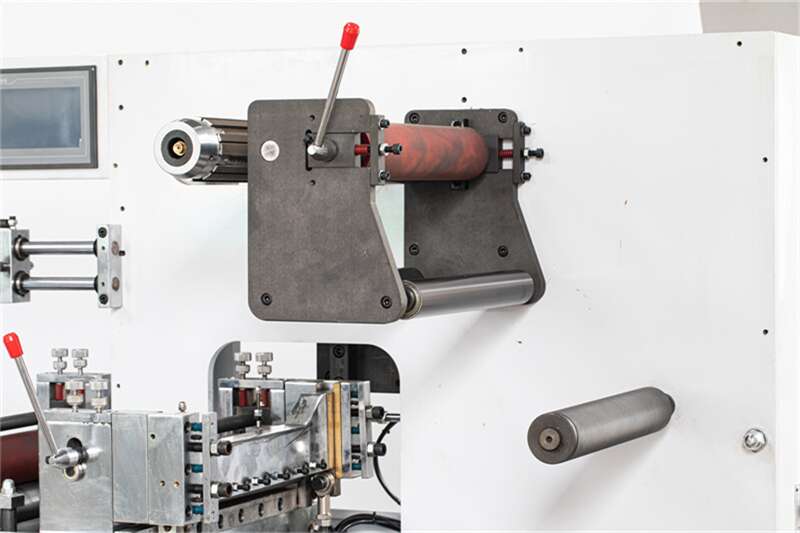

（1） Unwinding adopts cold ring tension control, electronic BST paper guide with ultrasonic edge guide sensor （2） The die-cutting station adopts independent Panasonic servo drive control, which can run in two states of half rotation and rotation. （3） Slitting device with two rewinding shafts （4） Combination function, can add semi-rotary flexo printing unit, realize flexo uv varnish + semi-rotary die cutting + slitting at one time. （5） Independent electric box control, movable touch screen control. （6） The rotary die-cutting machine supports remote control. Any software problems can be solved directly with a laptop computer.

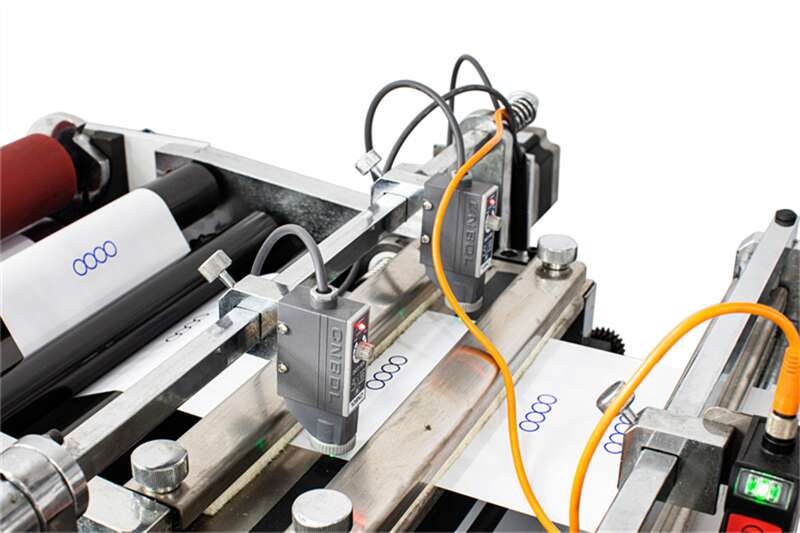

BST webgui :unwinder with closed - loop tension control , electronic web guide with ultrasonic edge guide sensor hot stamping unit: Horizontal/vertical 90°rotating and adjustable stamping The sliding axis controls the material, and multiple rolls of material can be stamping at the same timeSnowable waste collection : very good solution for un normal shape label after die cutter , won’t brake when do waste collection process Slitting device with ten round knife euqipped . minmimum slit width 17mm . Double rewinder Italy brand colful tracking sensor to moniting register ten lins Servo driver controlled Sheet device , PLC control the sheet length Semi rotary flexo unit : full servo driver controlled , can do semi rotary &rotary two method running , 152Z printing cylinder equipped , 1.7mm /1,14 plate thickness use , o,38 mm adhesive tapes .Silk screen unit . Semi rotary & rotary die cutter device , Magnetic cylinder in 152Z. All imported Main electrcia parts including panasonic servo motor & driver , Trio UK PLC and etc .
