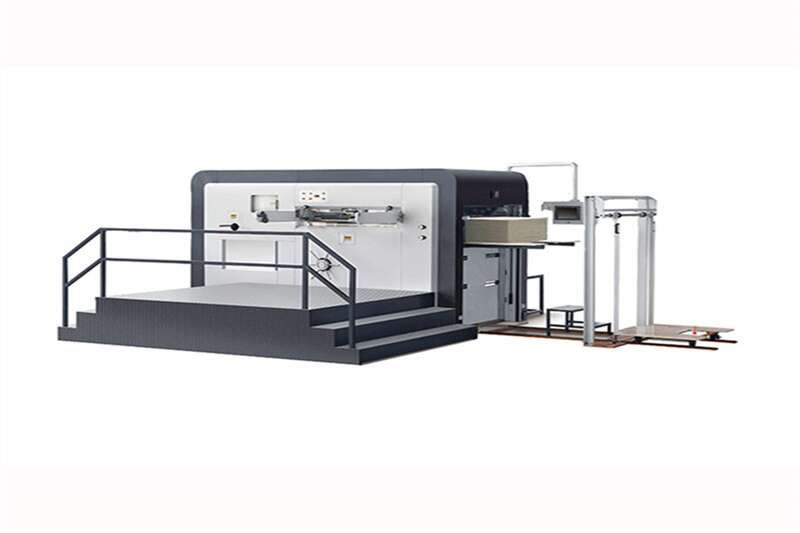

Semiautomatic platen Die-cutting Machine features high operation speed high safety and easy operation. It’s is a perfect equipment to die-cut or emboss 250-1000g/㎡cardboard and die-cut ≤8mm corrugated paper , and the max. size is 1330×980, min. size is 580×480. It’s die-cutting pressure can achieve 300T and the min. gripper end is 8mm. The max. hourly output production per hour is 4200 sheets. BL-1300 combined the advanced technology of home and abroad which has the advantage of high speed and stable property.
Semiautomatic platen Die-cutting Machine features high operation speed high safety and easy operation. It’s is a perfect equipment to die-cut or emboss 250-1000g/㎡cardboard and die-cut ≤8mm corrugated paper , and the max. size is 1330×980, min. size is 580×480. It’s die-cutting pressure can achieve 300T and the min. gripper end is 8mm. The max. hourly output production per hour is 4200 sheets. BL-1300 combined the advanced technology of home and abroad which has the advantage of high speed and stable property.
|
Max. Sheet size |
1330 x 980 mm |
|
Min. Sheet size |
580 x 480 mm |
|
Max. Feeder pile height |
1300mm |
|
Max. Delivery pile height |
1200mm |
|
Max. Die cutting size |
1300 x 950 mm |
|
Die cutting plate size |
1330 x1026 mm |
|
Cutting rule height |
23.8mm |
|
Stock Range |
Paper250~2000g/m2,corrugate thickness≦8mm（F,E,B) |
|
Die cutting accuracy |
≤ ± 0.5mm |
|
Max. Die cutting speed |
300 T |
|
Max. Die cutting speed |
4200 Sheet/Hour |
|
Min. Holding max-width='100%' width |
8 mm |
|
Air requirement |
Gas displacement 0.36m3/min,discharge pressure:0.6-0.7Mpa |
|
Power required |
Three phase 380V/50HZ |
|
Overall power |
17 kw |
|
Net weight approx |
16 T |
|
Overall dimension |
6100x4550x2400mm（include workbench、pre-piling trolley） |
Illustrate in detail

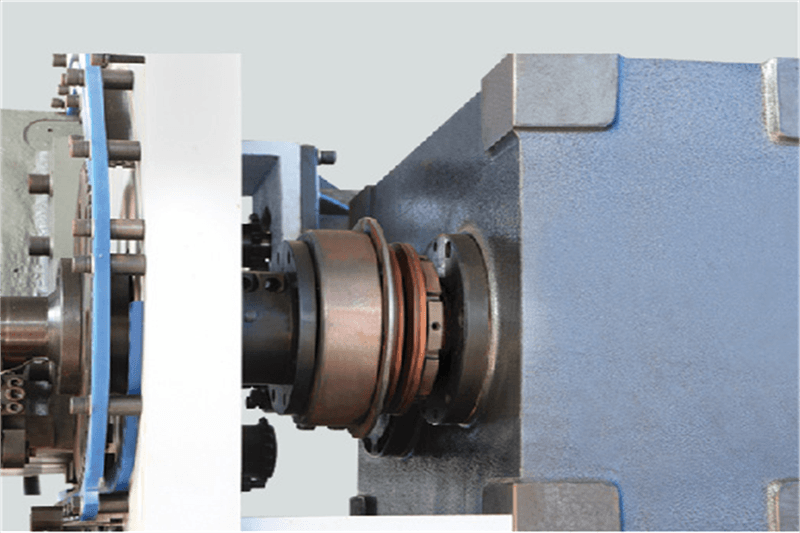

Powerful oil supply lubrication
system, main chain microcomputer
controlled automatic intermittent

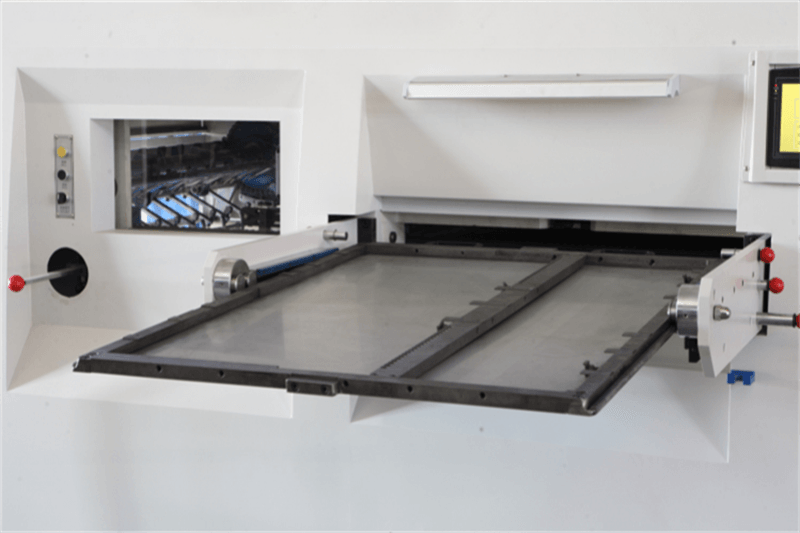

lubricationUnique side positioning design,
so that each row of teeth is positioned on a positioning line
Accurate pressure regulating system,
easy to adjust when the machine is running.
Semiautomatic platen Die-cutting Machine features high operation speed high safety and easy operation. It’s is a perfect equipment to die-cut or emboss 250-1000g/㎡cardboard and die-cut ≤8mm corrugated paper , and the max. size is 1330×980, min. size is 580×480. It’s die-cutting pressure can achieve 300T and the min. gripper end is 8mm. The max. hourly output production per hour is 4200 sheets. BL-1300 combined the advanced technology of home and abroad which has the advantage of high speed and stable property.
Flat die cutting with peeling is an ideal equipment for die cutting and creasing paper and cardboard packaging materials. The main electrical components are all world-famous brands, and the industrial cooling system ensures long-lasting and stable performance of the electrical components.
