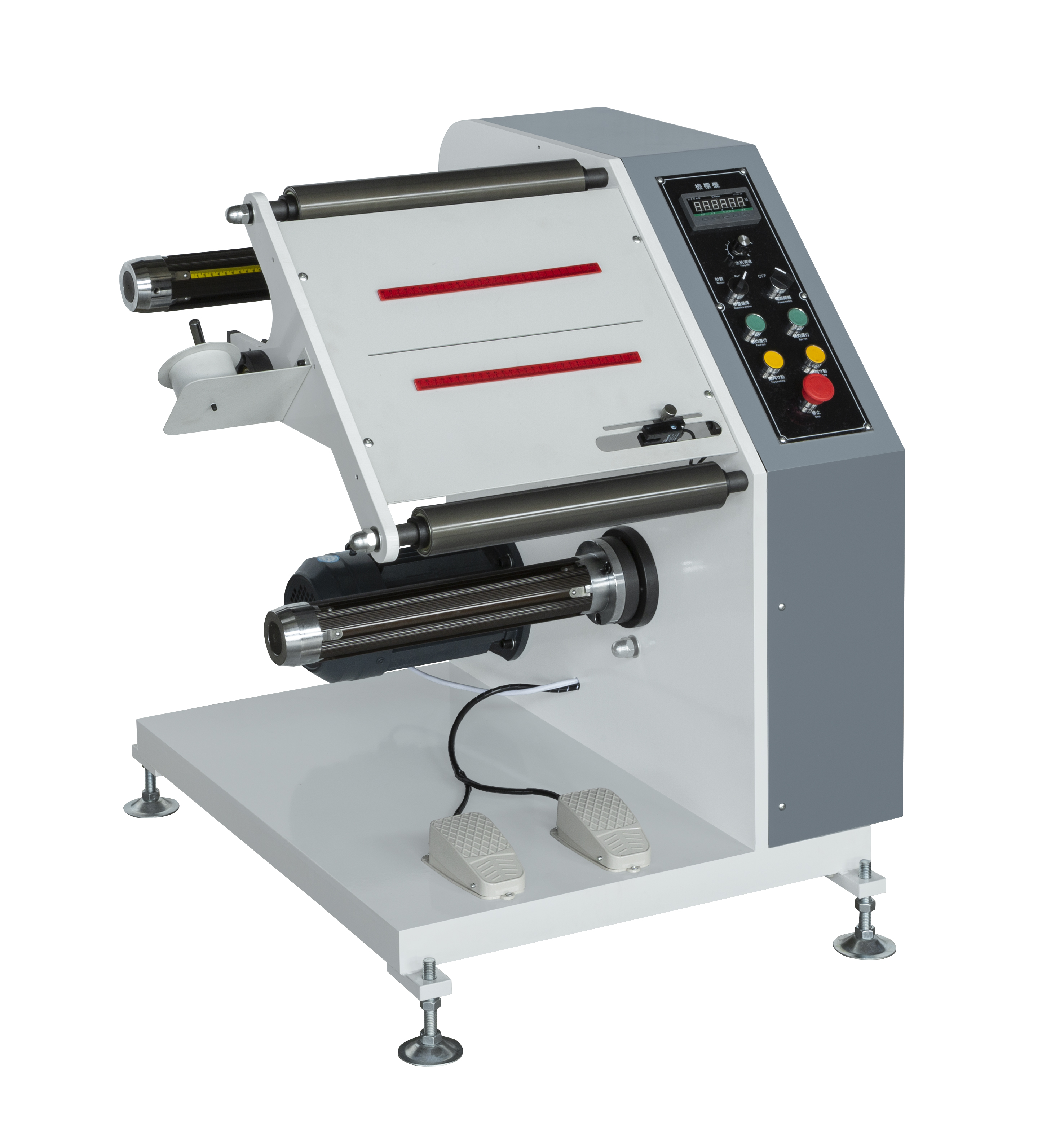

The JB-350 label inspection machine is a supporting product for flexographic printing machines and automatic label die-cutting machines. It is used to inspect the quality of flexographic printing and die-cutting products and features automatic meter and number counting functions. The whole machine features a compact structure, high speed, high frequency conversion speed regulation efficiency, simple operation and stable running.
Features
The JB-350 label inspection machine is a supporting product for flexographic printing machines and automatic label die-cutting machines. It is used to inspect the quality of flexographic printing and die-cutting products and features automatic meter and number counting functions. The whole machine features a compact structure, high speed, high frequency conversion speed regulation efficiency, simple operation and stable running.
Main technical parameters
Type
JB-350
JB-450
JB-550
Speed
80m/min
80m/min
80m/min
Max Web
Width
350mm
450mm
550mm
Max Rewinding Diameter
500mm
500mm
500mm
Voltage
AC220V±10%
AC220V±10%
AC220V±10%
Power
1.5KW
1.5KW
2.2KW
Overall Dimension
0.9×0.62×0.96(m)
0.9×0.72×0.96(m)
0.9×0.82×0.96(m)
Weight
About 250kg
About 270kg
About 290kg
JB-PT350 inspection machine is a complementary product for flexographic printing presses and automatic label die-cutting machines, used to check the quality of flexographic printing and die-cutting products. It features automatic meter counting and counting functions. The entire machine has a compact structure, operates quickly, offers high efficiency with variable frequency speed control, is easy to operate, and runs smoothly.
The JB-350 label inspection machine is a supporting product for flexographic printing machines and automatic label die-cutting machines. It is used to inspect the quality of flexographic printing and die-cutting products and features automatic meter and number counting functions. The whole machine features a compact structure, high speed, high frequency conversion speed regulation efficiency, simple operation and stable running.
