Machine use:
This machine is mainly used for rewinding, rewinding, subwinding, meter counting and inspection of various kinds of coiling materials.
Machine use:
This machine is mainly used for rewinding, rewinding, subwinding, meter counting and inspection of various kinds of coiling materials.
Parameter introduction
Machine name |
Desktop platform winder |
Machine model |
GW-FJ-230S |
Scope of application |
Daily chemicals, pharmaceuticals, and materials, mainly paper; |
Coil max-width='100%' width range |
20mm~230mm |
Maximum unwinding diameter |
Φ400mm |
Maximum winding diameter |
Φ400mm |
Retracting and unwinding air shaft size |
3 inches (standard configuration of Φ76mm); |
Maximum detection speed |
60m/min; rewinding speed 120m/min; |
Start acceleration |
≤5s Deceleration stop time: ≤2.5s; |
Defect shutdown accuracy |
±50mm |
Winding end surface uniformity |
±0.2mm |
Unwinding tension range |
10~100N (according to operation settings) |
Unwinding tension accuracy |
±5N |
Rewinding tension range |
10~100N |
Winding tension accuracy |
±3N |
Mechanical part |
|
The runout of rollers and shafts |
≤0.05mm imported bearings |
Overall machine reliability |
|
Number of machine failures |
≤2 times/year |
MTTR (mean time between failures and maintenance) of the entire machine |
≦24h |
Operation vibration |
Does not affect detection and image acquisition |
Weight |
300kg |
Sizes |
1250mm X1200mmX1200mm |

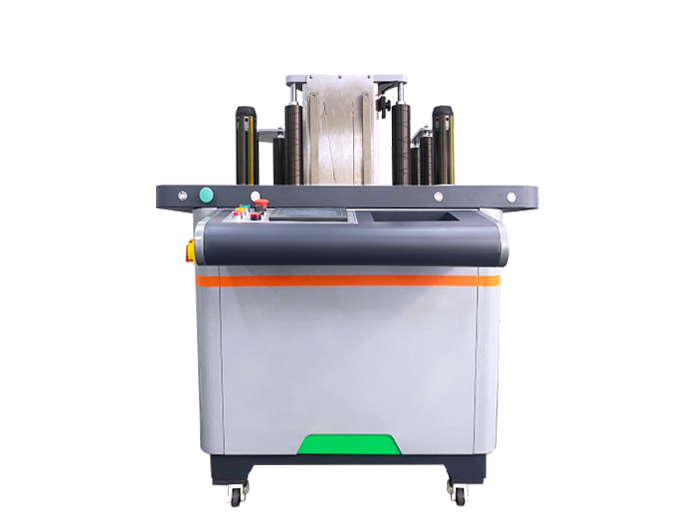

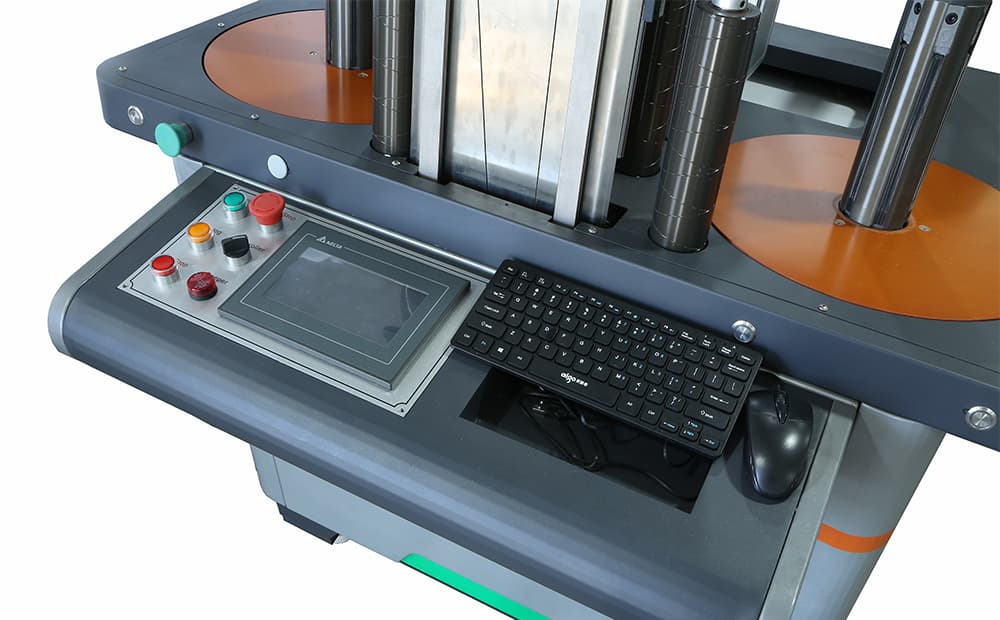

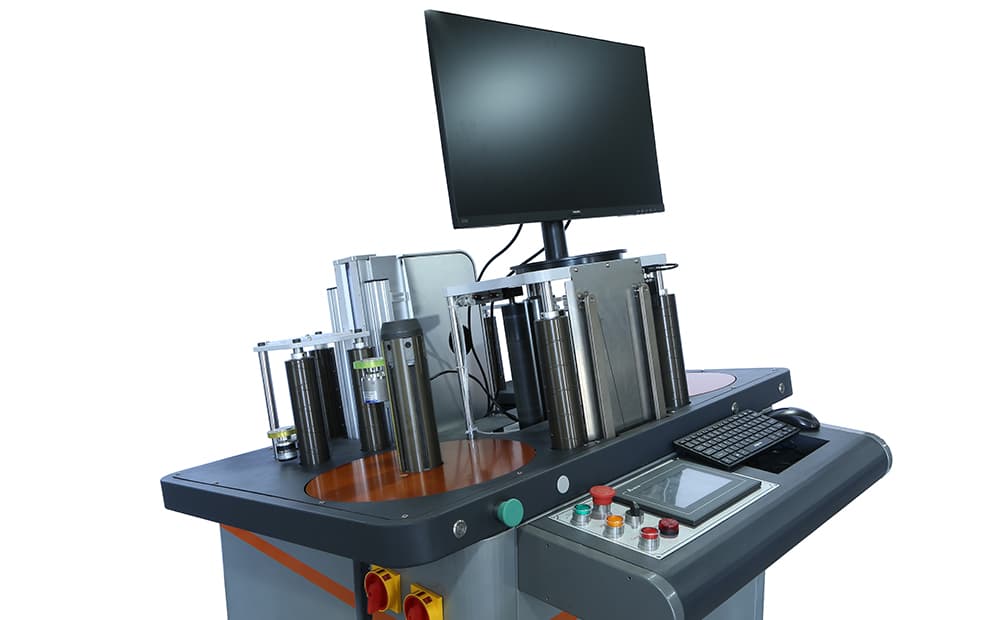

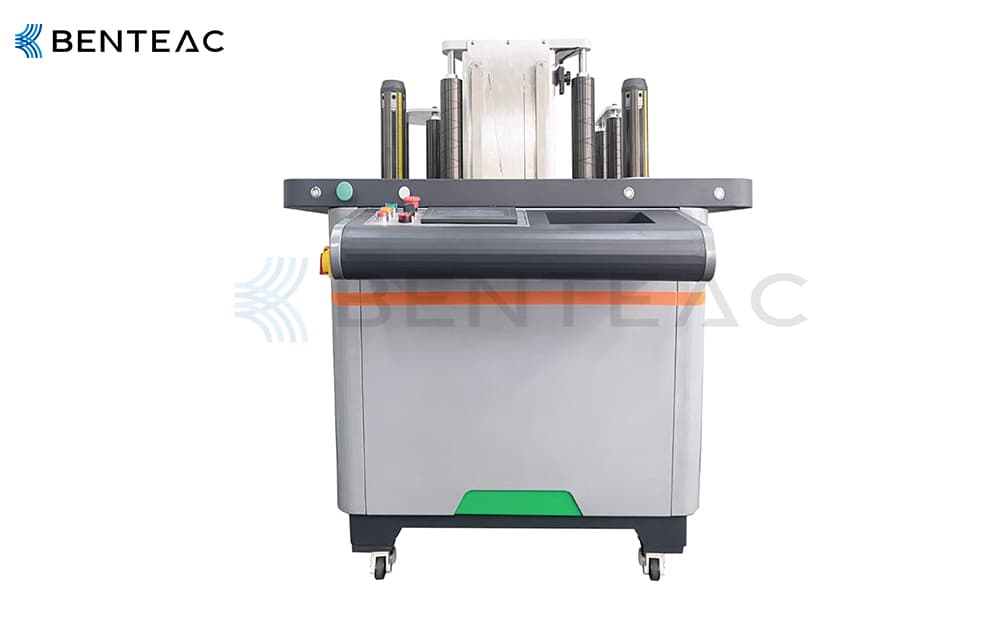

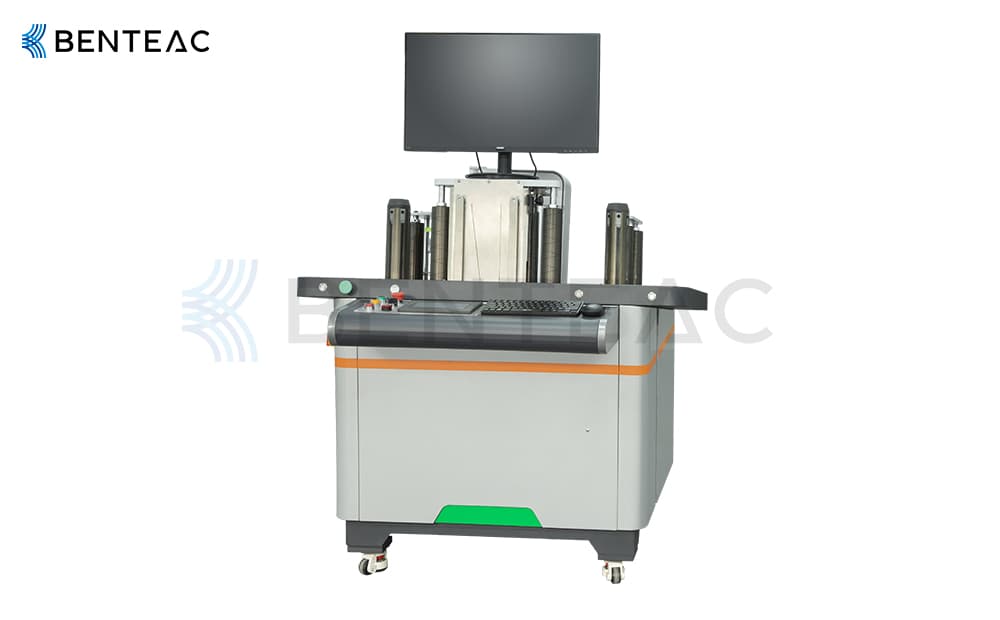

Machine Detail Pictures:

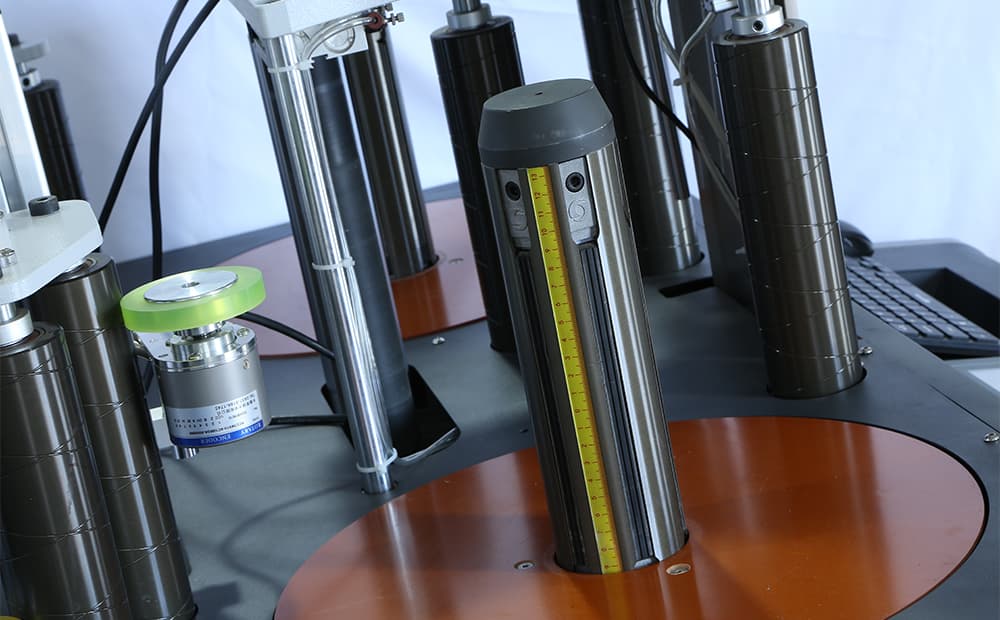

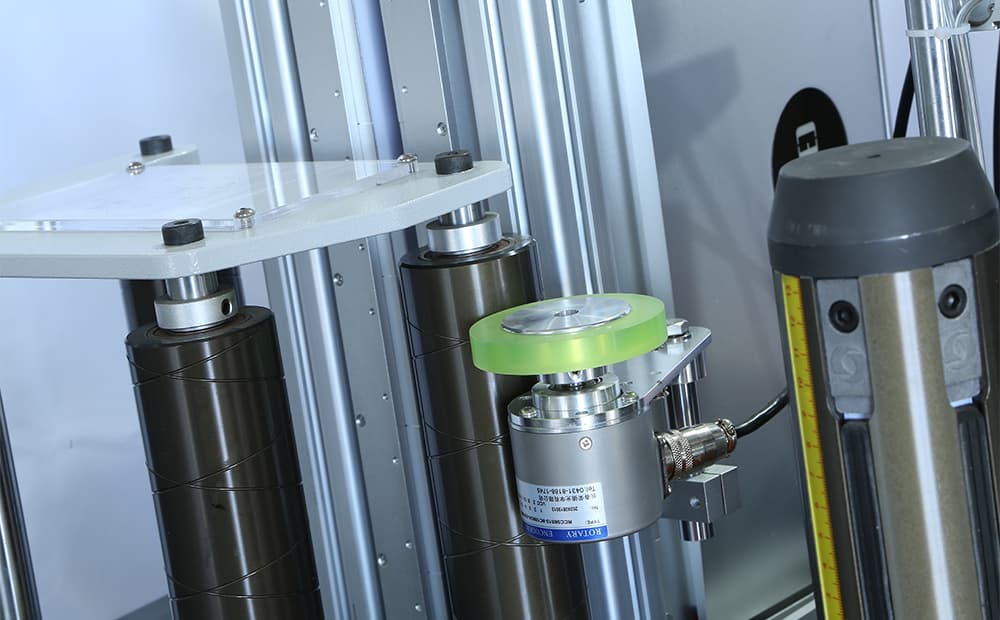

Machine features: 1. The fuselage adopts electrostatic spraying-baking paint, which is solvent-resistant. 2. Adopt brand motor/reducer, digital display governor, stepless speed change to ensure stable operation of the machine. 3. Using the meter sensor, you can set the number of meters to automatically stop. 4. Using frequency converter, start-stop/acceleration/deceleration is more accurate and stable. 4. The rewinding/unwinding reel adopts an inflatable shaft. 5. Using magnetic powder tension, the tension can be adjusted. 6. Long service life, mainly used for rewinding various types of plastic coils. 7. Rotate the adjustment switch clockwise to slowly increase from low speed to desired speed.
Machine features: Adopting the dc correction control system, the machine runs smoothly, quietly and durable.Ultrasonic sensors are used to sense transparent materials." Using magnetic powder brake, it is convenient to control the unwinding tension and the tightness of the material. The machine will automatically stop and give an alarm when the machine is rectified to the limit position. When the machine is unattended, it will stop and give an alarm after the machine is running.
Machine features: 1. The fuselage adopts electrostatic spraying-baking paint, which is solvent-resistant. 2. Adopt brand motor/reducer, digital display governor, stepless speed change to ensure stable operation of the machine. 3. Using the meter sensor, you can set the number of meters to automatically stop. 4. Using frequency converter, start-stop/acceleration/deceleration is more accurate and stable. 4. The rewinding/unwinding reel adopts an inflatable shaft. 5. Using magnetic powder tension, the tension can be adjusted. 6. Long service life, mainly used for rewinding various types of plastic coils. 7. Rotate the adjustment switch clockwise to slowly increase from low speed to desired speed.
Machine use: This machine is mainly used for rewinding, rewinding, subwinding, meter counting and inspection of various kinds of coiling materials.
