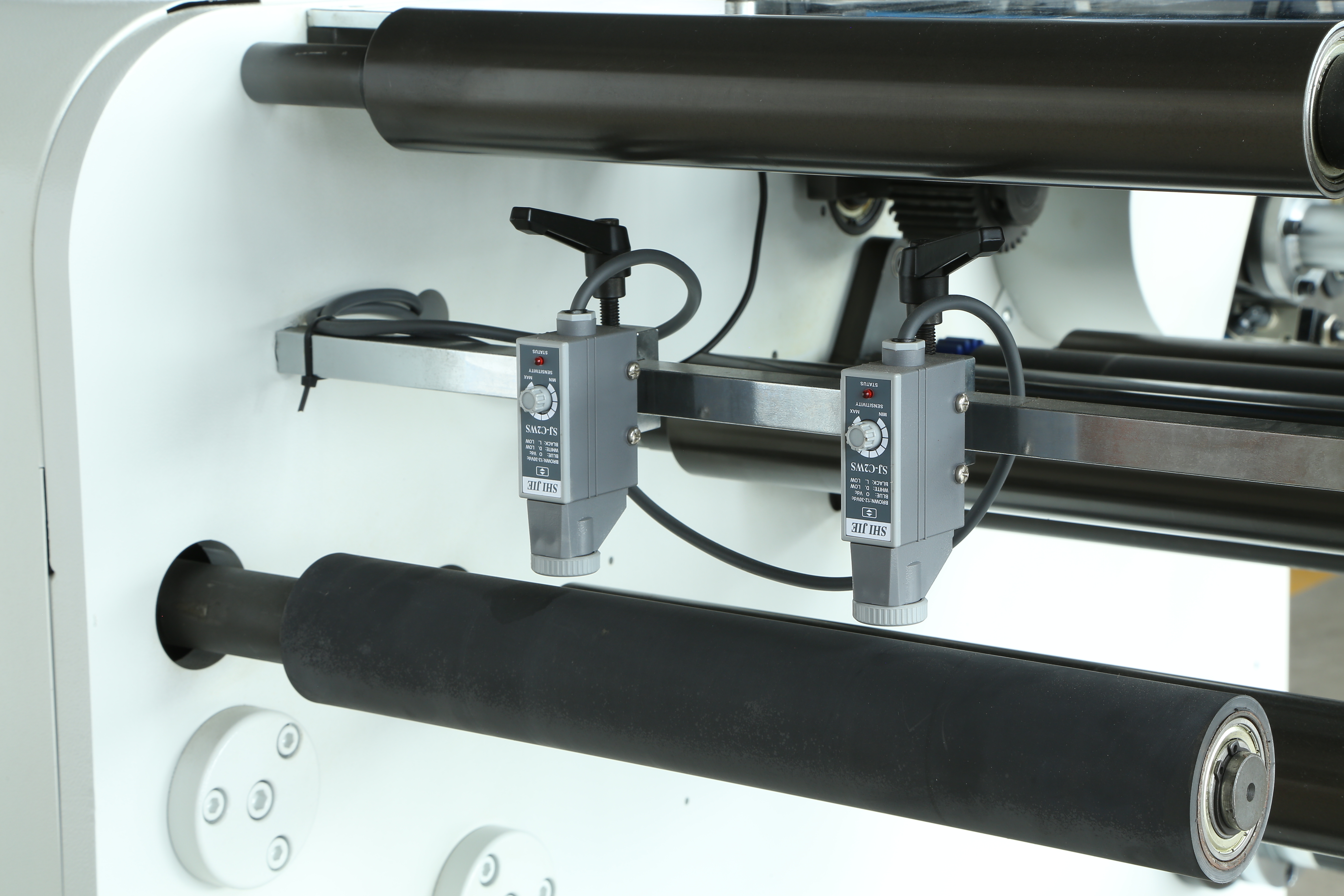

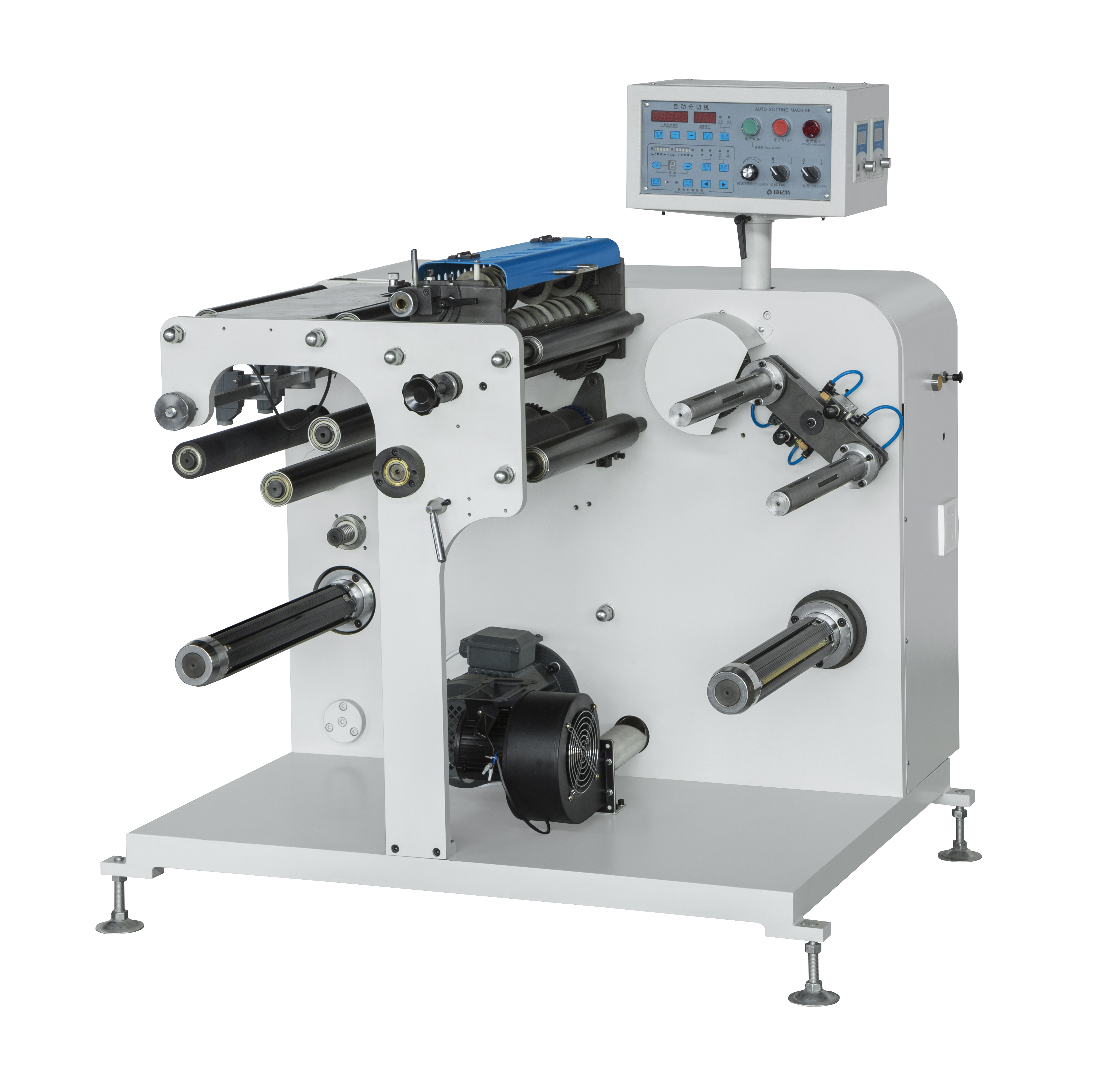

The FQ-B350 automatic slitter is a complementary product to the automatic die-cutting machine. It is suitable for cutting narrow-width paper and features automatic meter counting, automatic counting, automatic stopping at set length and quantity, and automatic unwind control via photoelectric sensors. The machine has a compact structure, fast speed, high efficiency, accurate slitting, simple operation, and stable running.
Features
The FQ-B350 automatic slitter is a complementary product to the automatic die-cutting machine. It is suitable for cutting narrow-max-width='100%' width paper and features automatic meter counting, automatic counting, automatic stopping at set length and quantity, and automatic unwind control via photoelectric sensors. The machine has a compact structure, fast speed, high efficiency, accurate slitting, simple operation, and stable running.
Technical Parameter
Type
Cutting Speed
Max Web Width
Max Unwinding Diameter
Max Rewinding Diameter
The cutting precision
Overall Diameters
Packing size
Machine Weight
The main motor power
FQ-B350
120m/min
350mm
500mm
500mm
±0.15mm
1250*1150*1350mm
1400*1200*1500mm
about 600kg
1.5kw
FQ-B450
120m/min
450mm
500mm
500mm
±0.15mm
1250*1250*1350mm
1330*1270*1500mm
about 700kg
1.5kw
The FQ-B350 automatic slitter is a complementary product to the automatic die-cutting machine. It is suitable for cutting narrow-width paper and features automatic meter counting, automatic counting, automatic stopping at set length and quantity, and automatic unwind control via photoelectric sensors. The machine has a compact structure, fast speed, high efficiency, accurate slitting, simple operation, and stable running.
The GW-FQ-3C350 automatic slitter is a complementary product to the automatic die-cutting machine. It is suitable for cutting narrow-width paper and features automatic meter counting, automatic counting, automatic stopping at set length and quantity, and automatic unwind control via photoelectric sensors.
Self-developed patented products, narrow-width label high-speed slitting machine, high-end full servo winding and unwinding taper tension system, imported brand process deviation correction system, featuring meter and count functions, speed reduction or stop for less material, and support electrostatic treatment.
Independently developed patented product, high-speed label slitting machine, large roll feeding system that can automatically feed materials.
