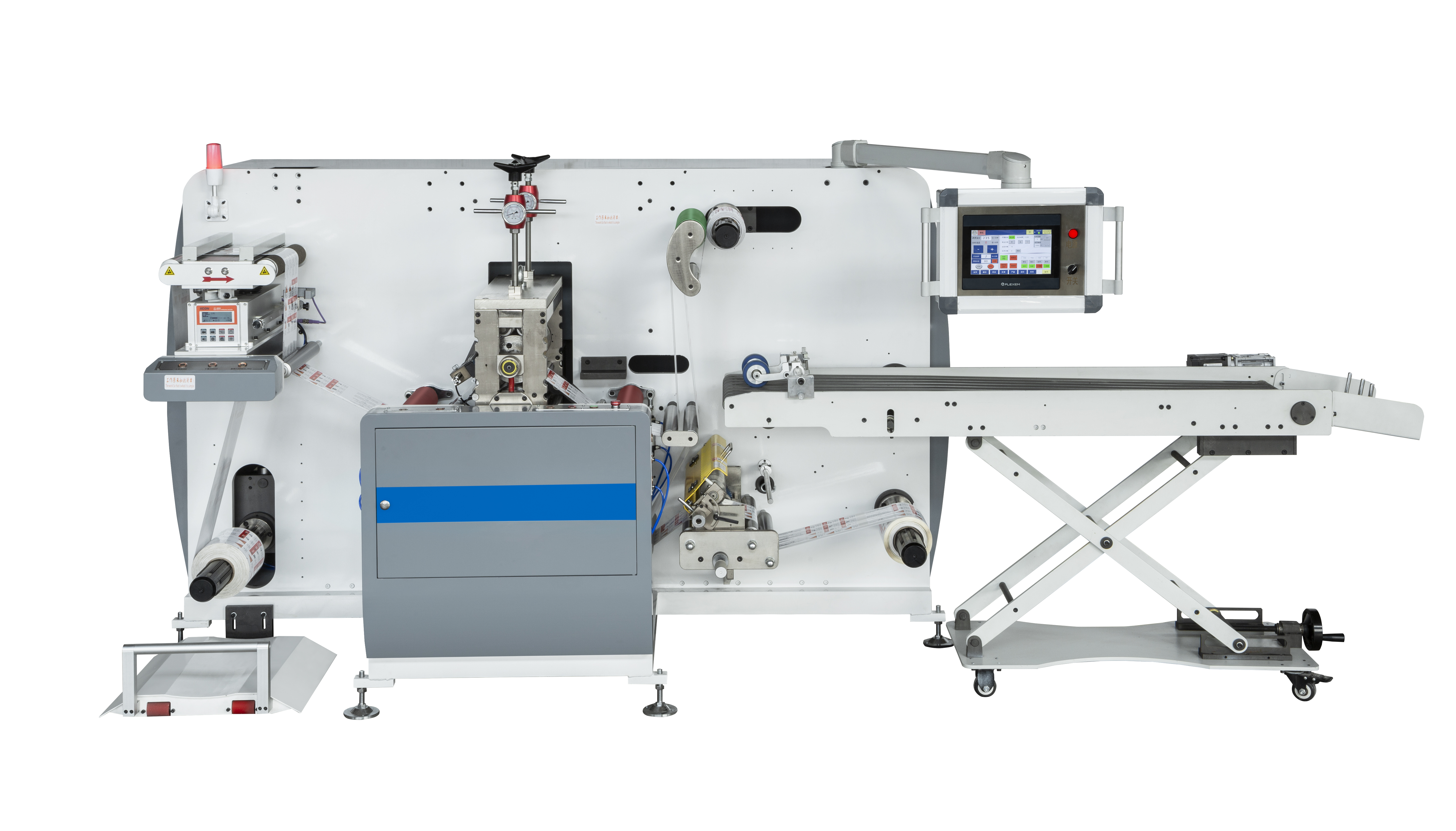

GW-JX-380 Multi-functional Intermittent rotary die-cutting machine
Function
GW-JX-380 multifunctional intermittent rotary die-cutting machine is developed to solve the problems of in-mold label inability to die-cut or low efficiency of using traditional equipment in label printing enterprises, and has obtained multiple patents. The machine integrates the full rotary die-cutting mode of in-mold label and the intermittent die-cutting mode of self-adhesive label. The two working modes can be interchanged at will. Small batches of in-mold labels can also be die-cut in intermittent mode. It is a good solution to the confusion of in-mold label projects in printing plants. In addition, lamination, striping or cutting can be selected.
Main Technical Parameter
|
Model |
GW-JX-380 |
|
Intermittent Max.Die Cutting Speed |
60 m/min |
|
Maximum Rotary Die Cutting Speed |
100 m/min |
|
Intermittent Maximum Die Cutting Length |
330 mm |
|
Self-Adhesive Die-Cutting Accuracy |
±0.15 mm |
|
In-Mold Marking Die-Cutting Accuracy |
±0.25 mm |
|

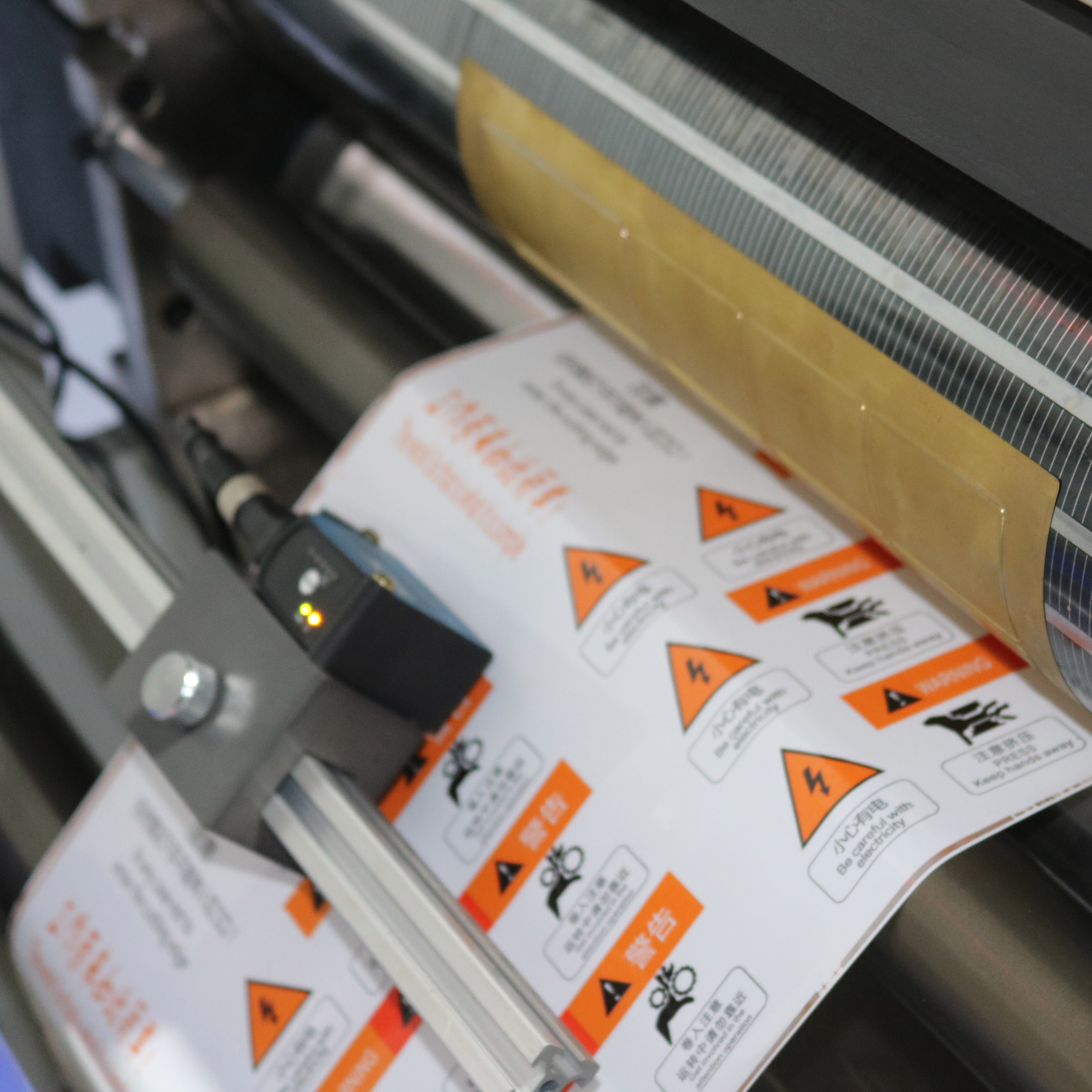

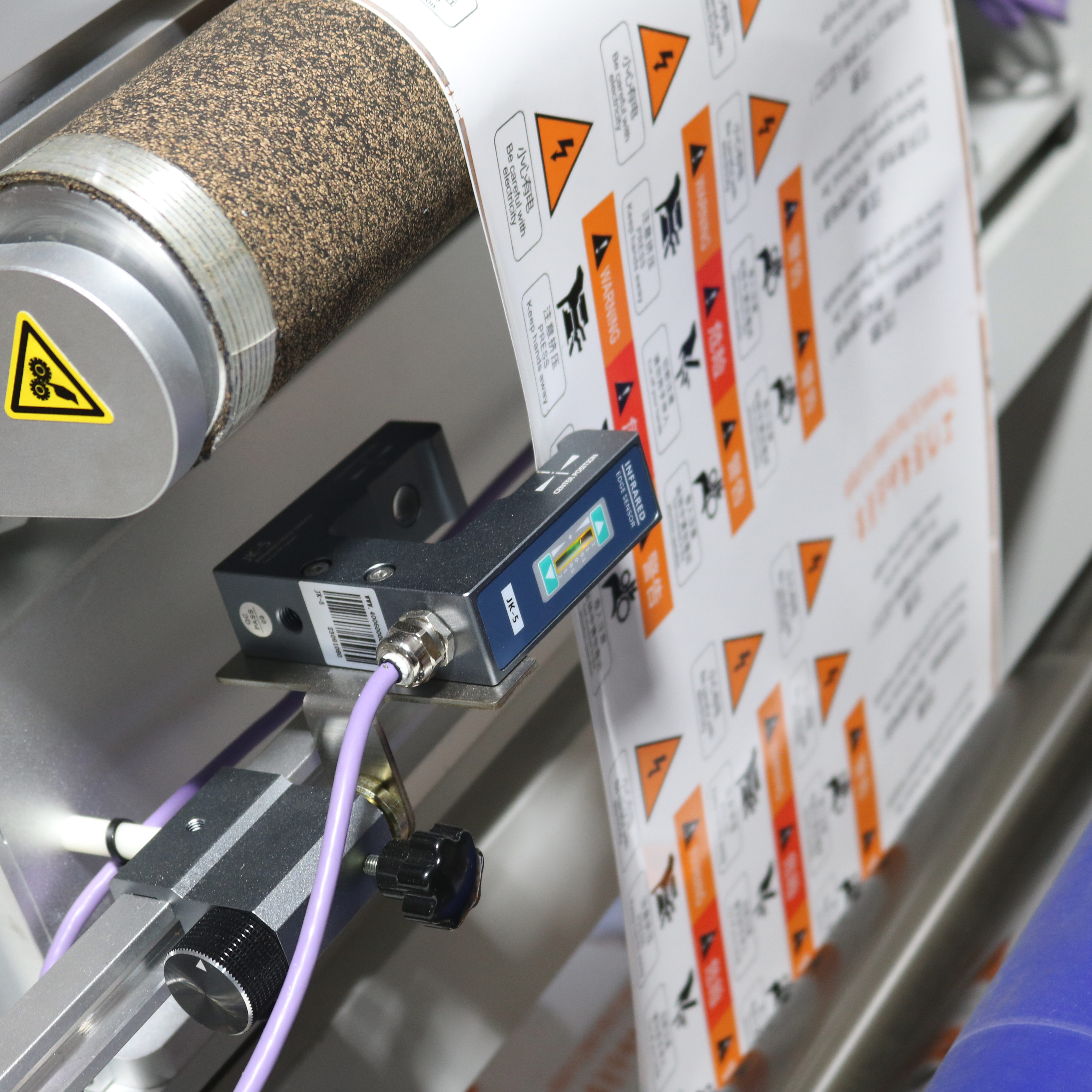

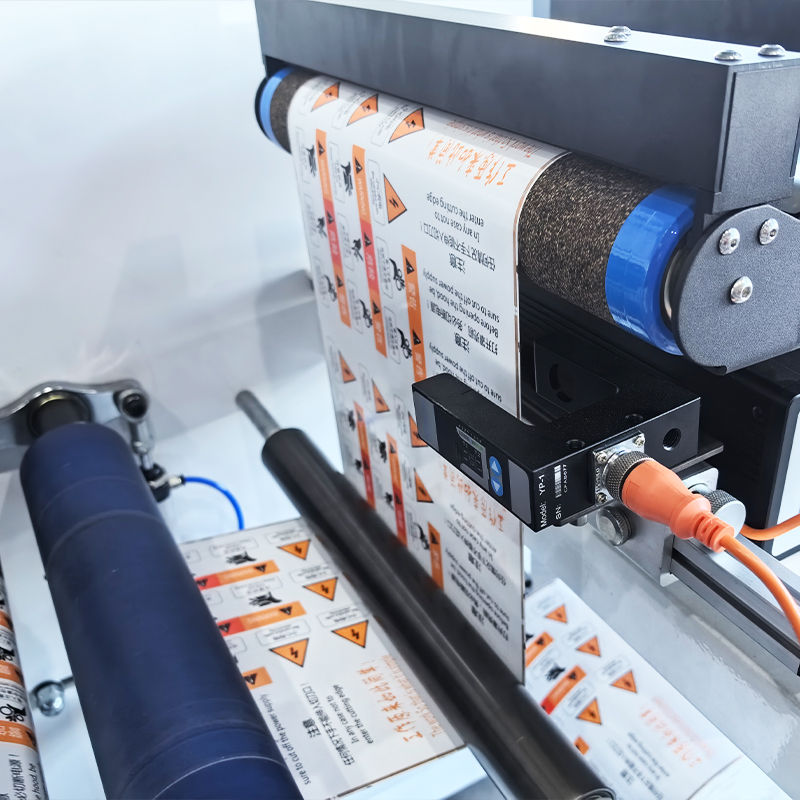

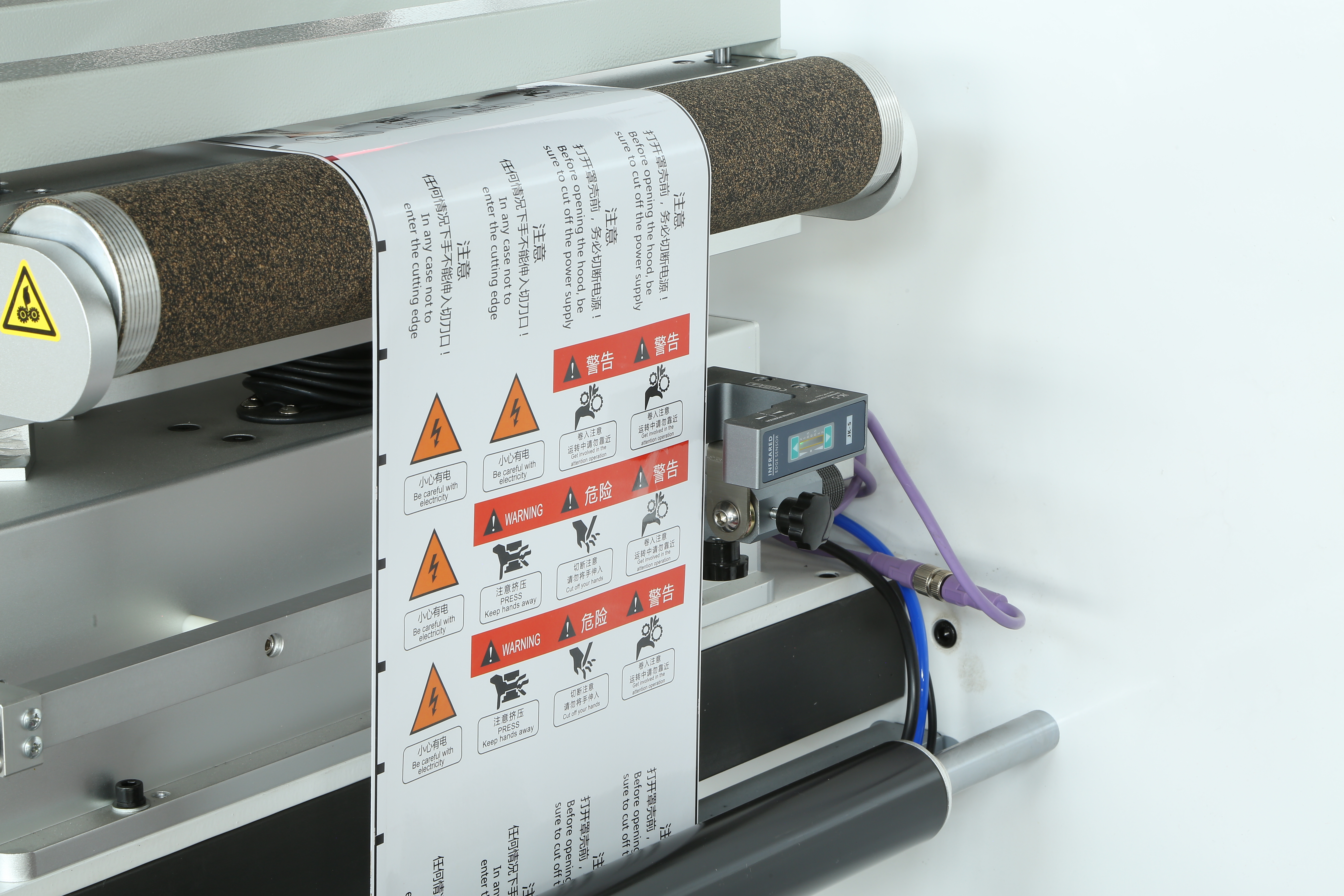

Die Cutting Positioning Method |
Color mark sensor |
|
Maximum Paper Feed Width |
380 mm |
|
Maximum Unwinding Diameter |
550 mm |
|

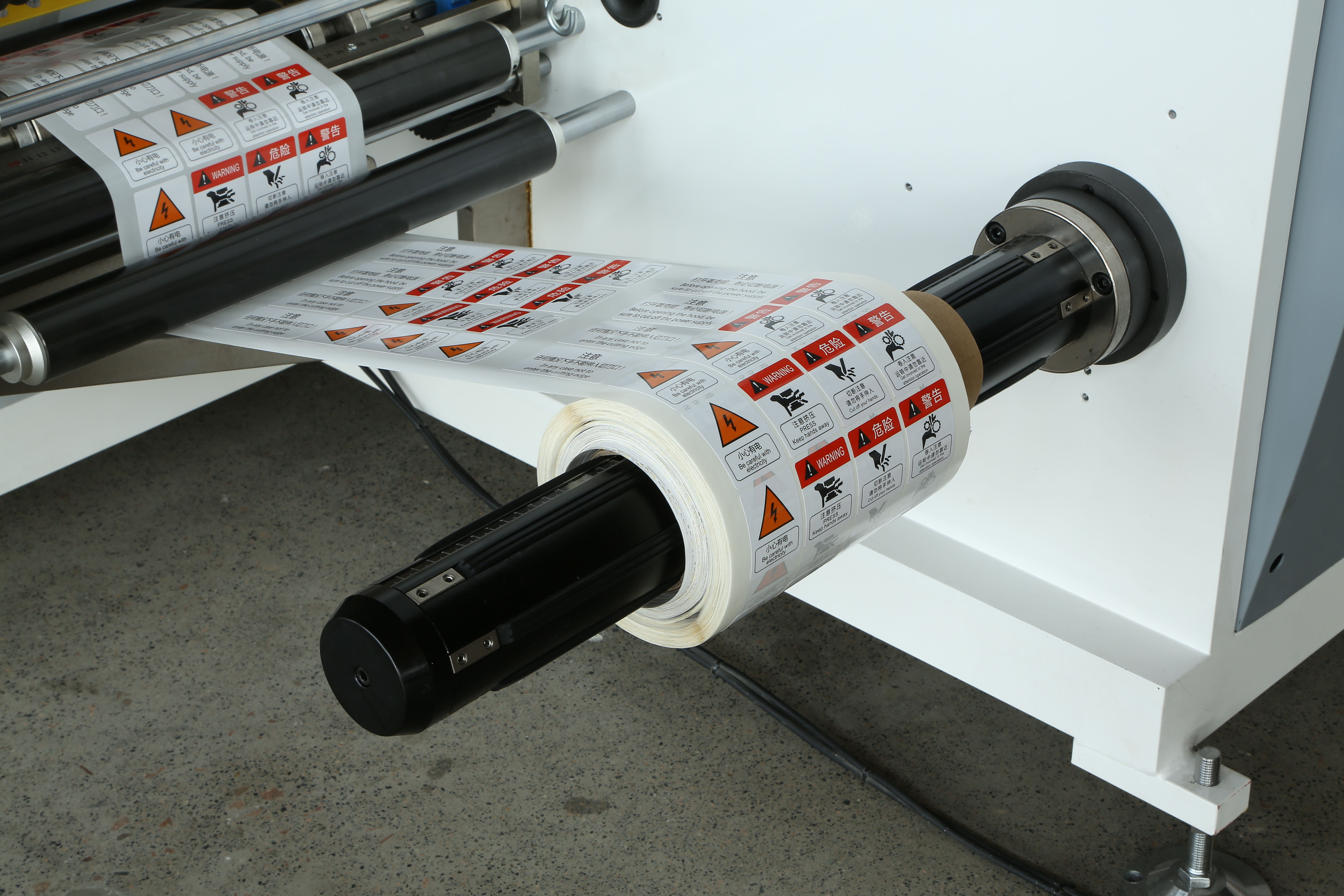

Maximum Rewinding Diameter |
550 mm |
|

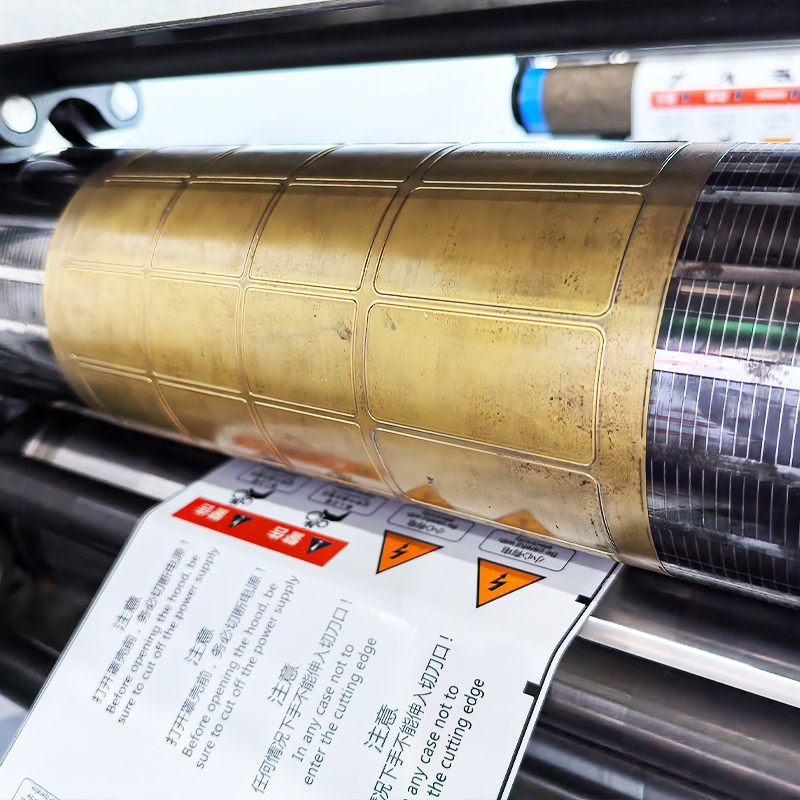

Die-Cutting Magnetic Roller(Standard) |
120T/140T |
|
Total Power |
15 kw |
|
Size |
2900x1200x1500mm |
|
Machine Weight |
2800 KG |
|
Working Power Supply |
AV380 V50 HZ |
|
Air Pressure Requirements |
0.4~0.6 MPa |
|

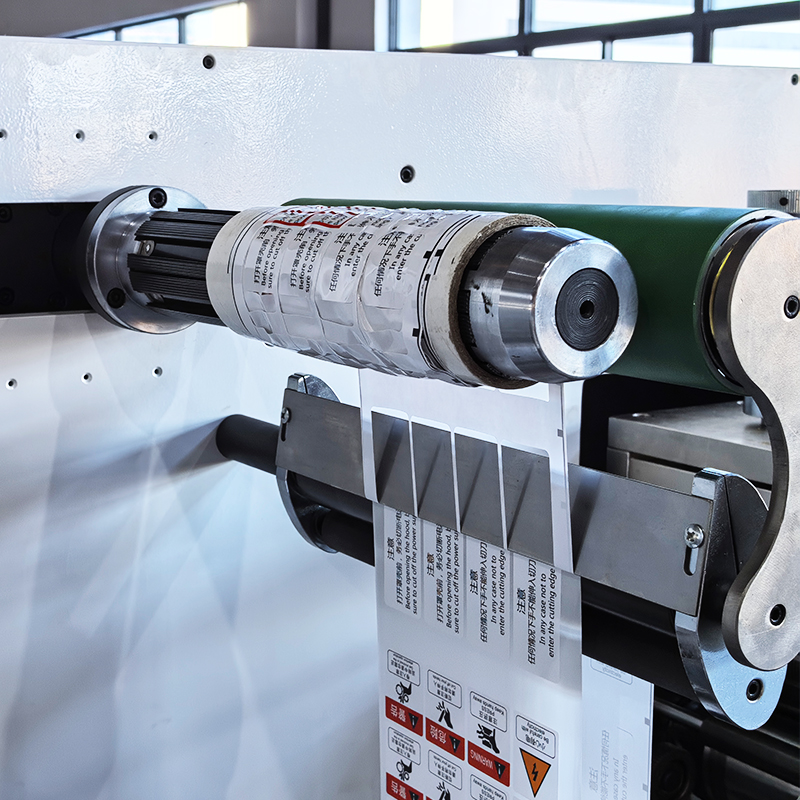

Minimum Slitting Width |
16 mm |
GW-JX-380 Multi-functional Intermittent rotary die-cutting machine
