Suitable for:
Plain paper, kraft paper, coated paper, cardboard, non-woven fabric, film, etc.

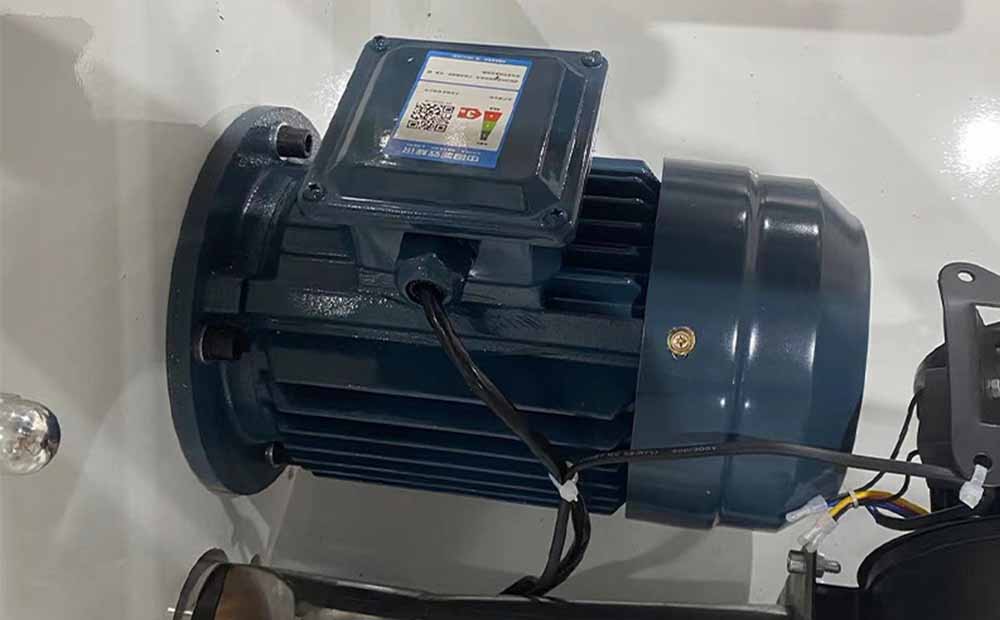

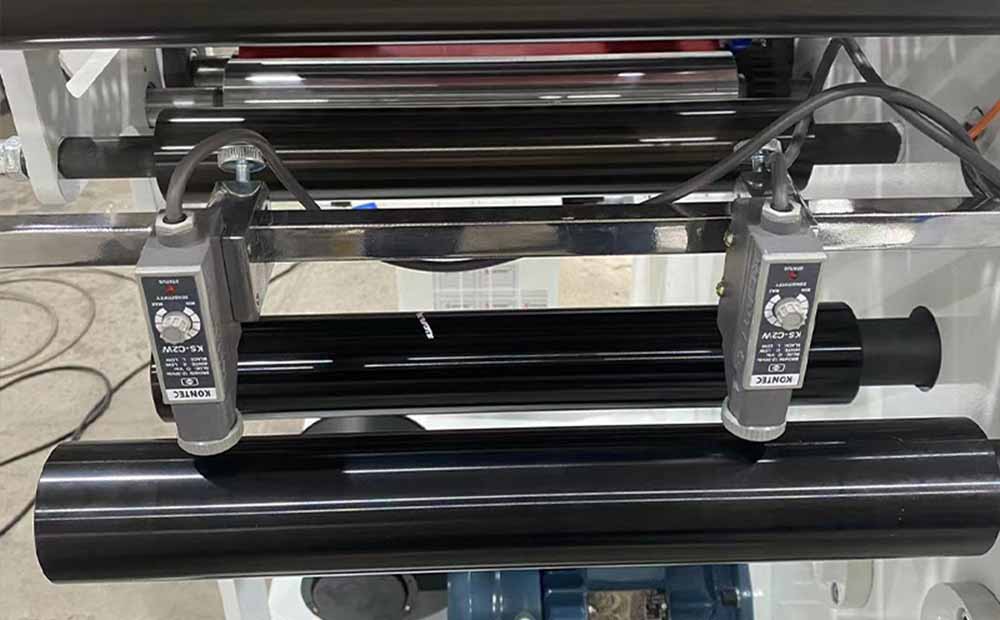

1. Adopt rewinding and double-receiving mode to rewind, automatically inflate and deflate, integrated servo deviation correction control system,Main motor: servo motor, equipped with PLC touch screen

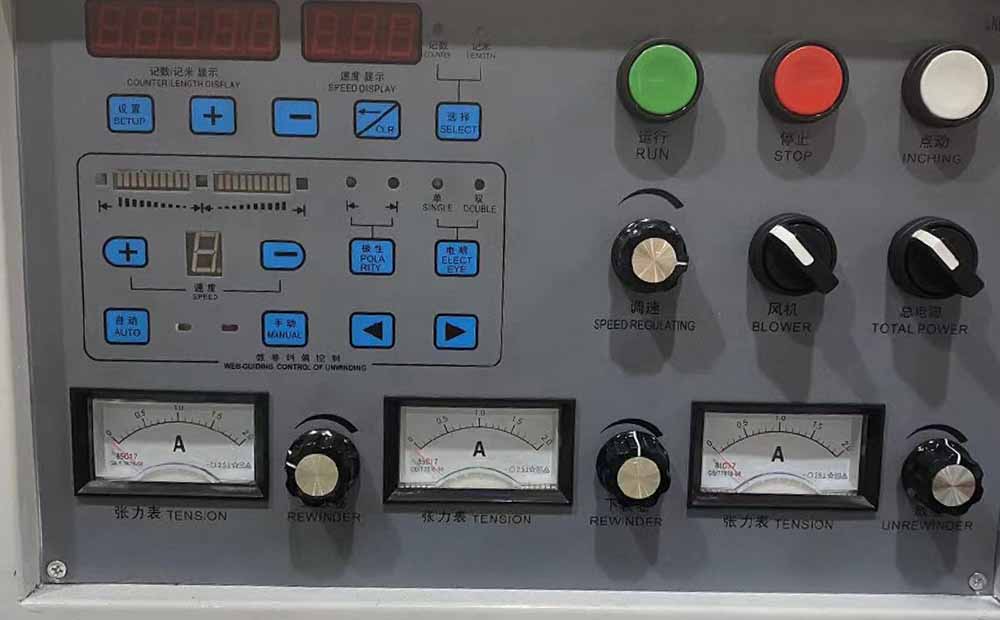

2. The control panel adopts integrated control, replacing the traditional old-fashioned buttons, and the operation is more convenient.
3. Magnetic powder control is adopted for feeding and discharging, which is more convenient for operation.
3. Magnetic powder control is adopted for feeding and discharging, which is more convenient for operation.
Technical Parameter
|
Model Type |
GW-FQ-350T |
GW-FQ-450T |
|
Max. Parent Web Width |
350mm |
450mm |
|
Max. Parent Web Dia.: |
200mm |
200mm |
|
Max. Rewinding Dia.: |
200mm |
200mm |
|
Min. Slitting Width: |
Round Type Blade: 30mm |
Round Type Blade: 30mm |
|
Thickness Range: |
Paper:50-300gsm |
Paper:50-300gsm |
|
Max. Machine Speed: |
100m/min |
200m/min |
|

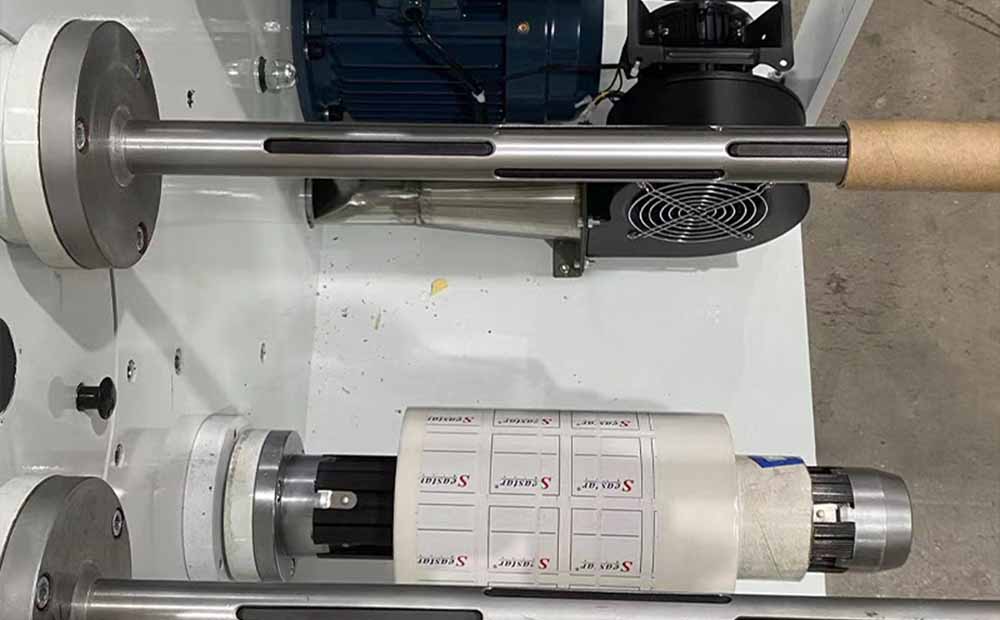

Unwinding/Rewinding Shaft: |
3” Pneumatic Air Expanding Shaft |
3” Pneumatic Air Expanding Shaft |
|
Overall Dimensions: |
2000 x 2500 x 1500mm |
2000 x 2500 x 1500mm |
|
Weight: |
600kg |
600kg |
*According to customer requirements, the winding reel can be changed to 1 inch or 1.5 inches.
