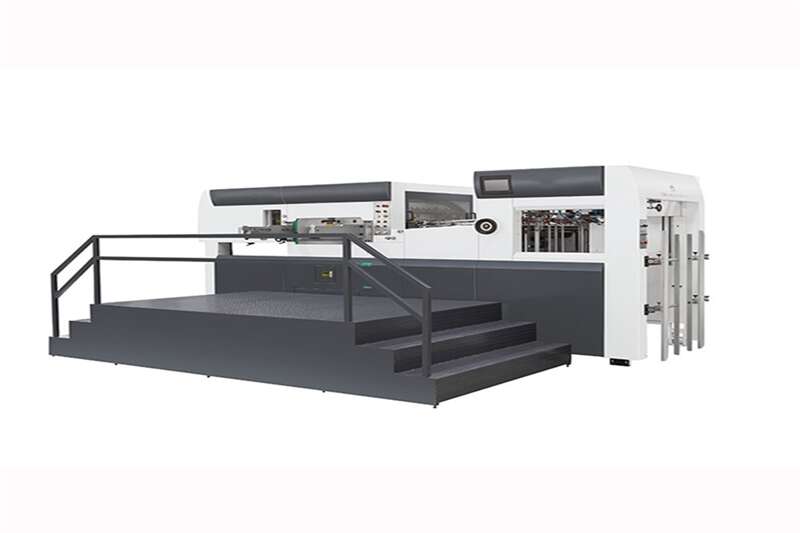

Flat die cutting with peeling is an ideal equipment for die cutting and creasing paper and cardboard packaging materials. The main electrical components are all world-famous brands, and the industrial cooling system ensures long-lasting and stable performance of the electrical components.

Product parts:

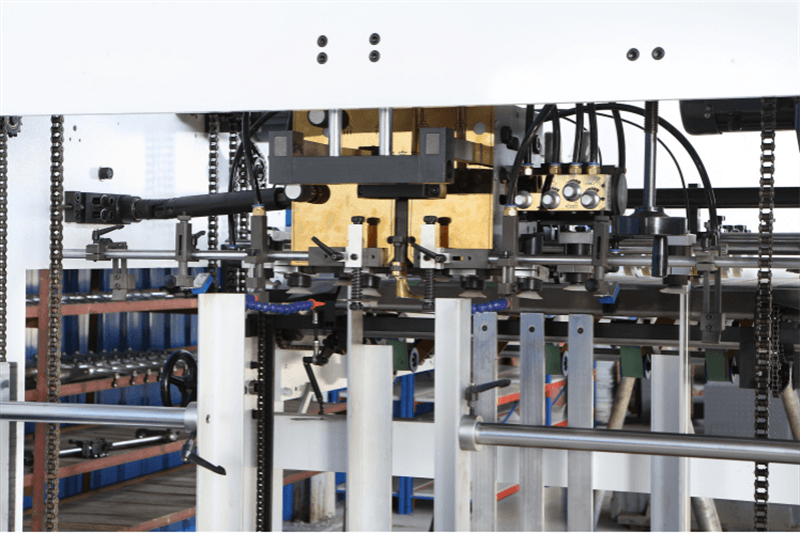

1. Feida head: Feida head adopts European technology, and the suction head can adjust various suction paper angles without stopping the machine in accordance with the deformation state of the paper, so that the suction paper is more stable. There are simple adjustment functions and precise use control functions. Both thickness and thickness, paper feeding is accurate, stable and reliable.

2. Paper feed section: triple safety protection device to prevent collision with the feeder head. Fine-tune the paper pile left and right. Strong suction paper feeder, four suction and four feed, the suction head can adjust various suction angles according to the deformation of the paper; the two sides are equipped with blowing devices to facilitate the separation of the paper and ensure smooth paper feeding

3. Paper conveying department: The imported paper conveying belt is equipped with high wear-resistant rubber pressure rollers and wool wheels, which can easily adjust the pressure, so as to ensure that the paper is smoothly conveyed to the pre-set position and reduce the number of downtime during work.

4. Molding part: novel transmission, realize stable die cutting, pneumatic plate lock, pneumatic clutch, fast and stable, unique die cutting plate frame can effectively prevent the die cutting plate from sagging and falling off.

5. Tooth row and chain: Tooth row body is made of special super-hard metal material, the surface is anodized, which can realize precise die-cutting and embossing and other processes in high-speed operation to achieve precision control. The main drive chain of the tooth row adopts Japanese chain, which improves the accuracy and stability of the machine and prolongs the service life.

6. Paper collection department: Realize automatic paper collection, neat and orderly, non-stop auxiliary paper collection device, improve efficiency, non-stop sampling mechanism, can realize die cutting paper at any time.

7. Pneumatic clutch: Imported components are used to reduce noise and reduce pneumatic impact.

8. Look at the sampling function: professionally designed pneumatic sampling mechanism, which is convenient to take samples for viewing at any time during the startup process, and the operation is more convenient.

9. Electrical control: The whole machine adopts imported PLC program control, various electrical components and detection switches.

 Technician Specification:

Illustrate in detail

The frequency conversion speed

motor drives the imported worm

gear and worm to make the

machine run smoothly and with low noise.

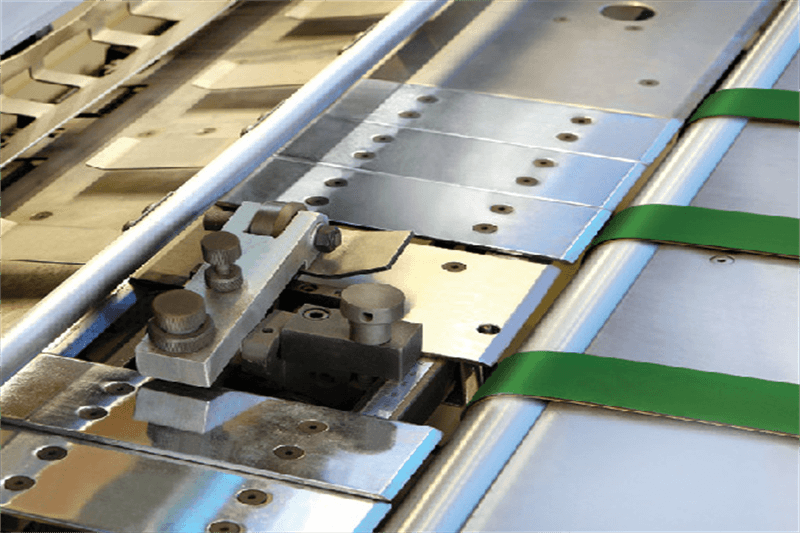

 Imported paper conveying belt can

ensure the smooth conveyance of paper without scratches.
