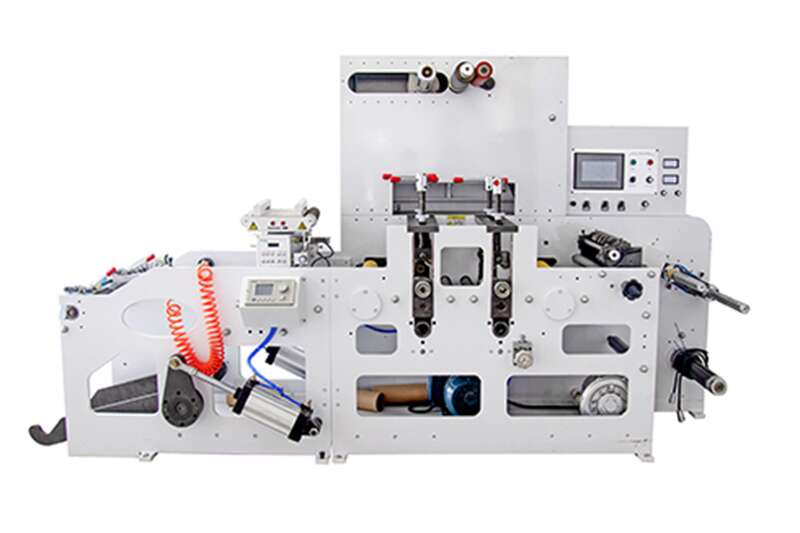

Double Station Die Cutting Machine

Rotary die-cutting machine adopts precise rotary die-cutting system, through micro-control to convert materials. Die cutting, waste rewinding and finished product rewinding are all in one process. Suitable for die cutting of self-adhesive paper, polyester labels and laser hologram marks. It has the functions of automatic meter counting, counting, set length and quantity automatic shutdown, unwinding controlled by photoelectric automatic correction. The machine has the characteristics of compact structure, fast speed, high efficiency, accurate cutting, simple operation and stable operation.

Пожалуйста, оставьте нам сообщение или отправьте электронное письмо по конкретной цене.
Пчтовый ящик: sale6@gawangmachine.com
WhatsApp:+8615868721121
Контакты насзапросить цену

Информация о продукте

Brief Introduction:

Rotary die-cutting machine adopts precise rotary die-cutting system, through micro-control to convert materials. Die cutting, waste rewinding and finished product rewinding are all in one process. Suitable for die cutting of self-adhesive paper, polyester labels and laser hologram marks. It has the functions of automatic meter counting, counting, set length and quantity automatic shutdown, unwinding controlled by photoelectric automatic correction. The machine has the characteristics of compact structure, fast speed, high efficiency, accurate cutting, simple operation and stable operation.

Main Technical Specifications:

Roller

Single station rotation

Double station rotation

Cutting Speed

80m/min

80m/min

Max. Unwinding Dia.

600mm

600mm

Max. Rewinding Dia.

450mm

450mm

Max. Web Width

320mm

320mm

Max. Mould Cutting Width

30mm

30mm

Orientation Accuracy

±0.15 mm

±0.15 mm

Total Power

2.2 Kw

2.2 Kw

Power Voltage

220V±10%

220V±10%

Weight

About800 Kg

About800 Kg

Overall Dimensions(LxWxH)

1800X1000X1600mm

1800X1000X1600mm


Illustrate in detail

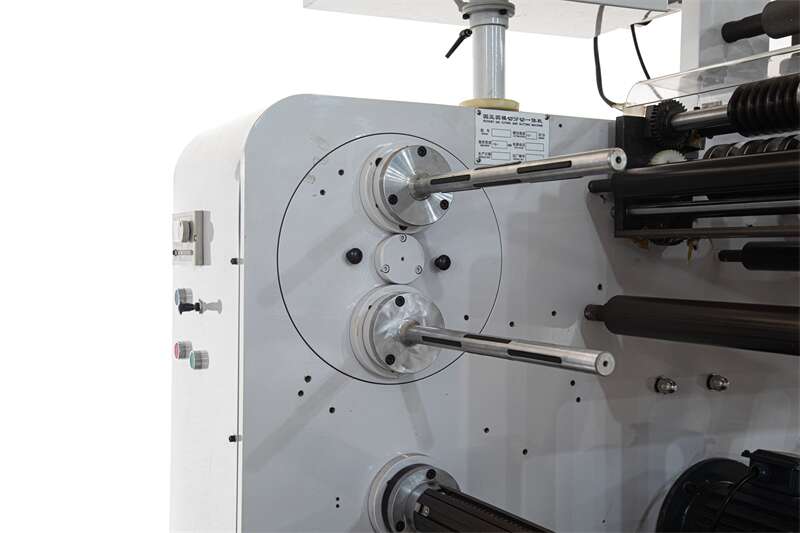

Rotary rewinding and one-key inflation


and deflation make rewinding more
efficient and convenient

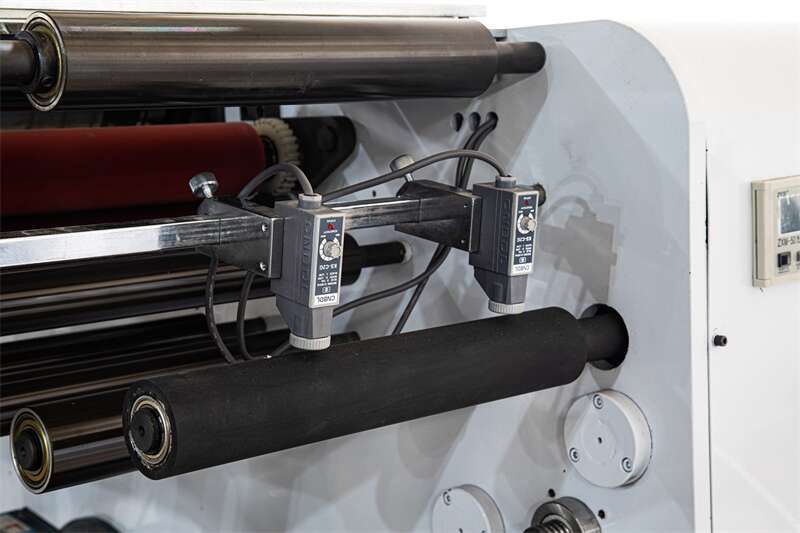

Self-contained dual electric eyes,
strong anti-interference ability
 high reliability, long service life

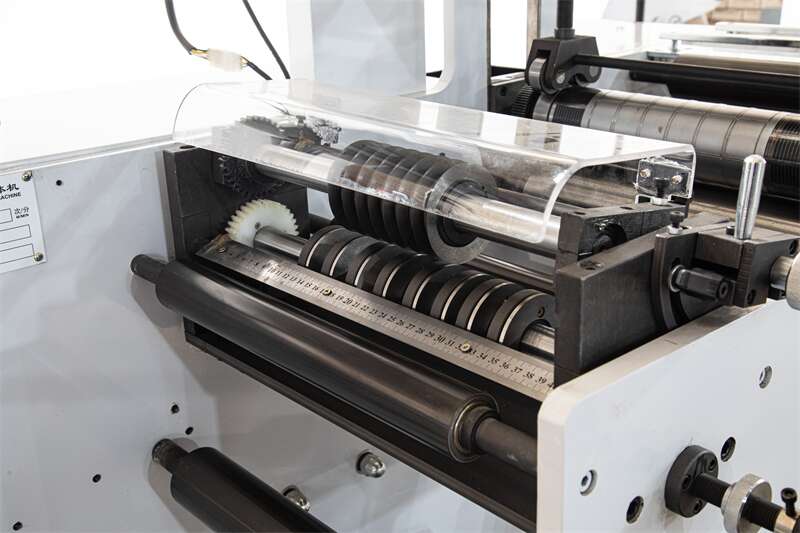

The slitting device has high speed
and high efficiency, improves
production efficiency and reduces
labor costs.

The mechanical button panel is the simplest, convenient and
natural way of human-computer interaction.

Noise reduction treatment:
The transmission mode is mainly
transmitted by the synchronous
belt-the equipment runs with low noise.
